Saturday, July 28, 2018

Les paul Pickup upgrade and magnet swap (Seymor Duncan 59 and Pearl Gates)


Les paul Pickup upgrade and magnet swap (Seymor Duncan 59 and Pearl Gates)



Hello friends, Its a humbucker pickups upgrade. I've got tired of my Burstbuckers (not pro) 1 and 2 copy, then I bought a Seymour Duncan Pear Gates Bridge (A2) and a 59 neck (A5), I guessed the 59 sounded a little boomy (lot of basses). The end of the history, I've swaped the pickups magnets: Alnico 5 to Alnico 2.
Now I have a Pearl Gates A5 and a Duncan 59 A2. Showed at the video below:

0:26 neck; 0:45 bridge; 1:05 both pickups



Tuesday, May 1, 2018

Headphone adapter to a 5W 5f1 champ

Headphone adapter to 5w 5f1 fender champ model, resistive passive circuit. Resistive load and a hight-pass capacitor switch (V2).



Atention:

  • Values has been tested at a 5W amplifier, not higher.

  • Allways starts to use with the volume at minimal.


First version V1:

* 5n6 capacitor to produce a fake stereo effect

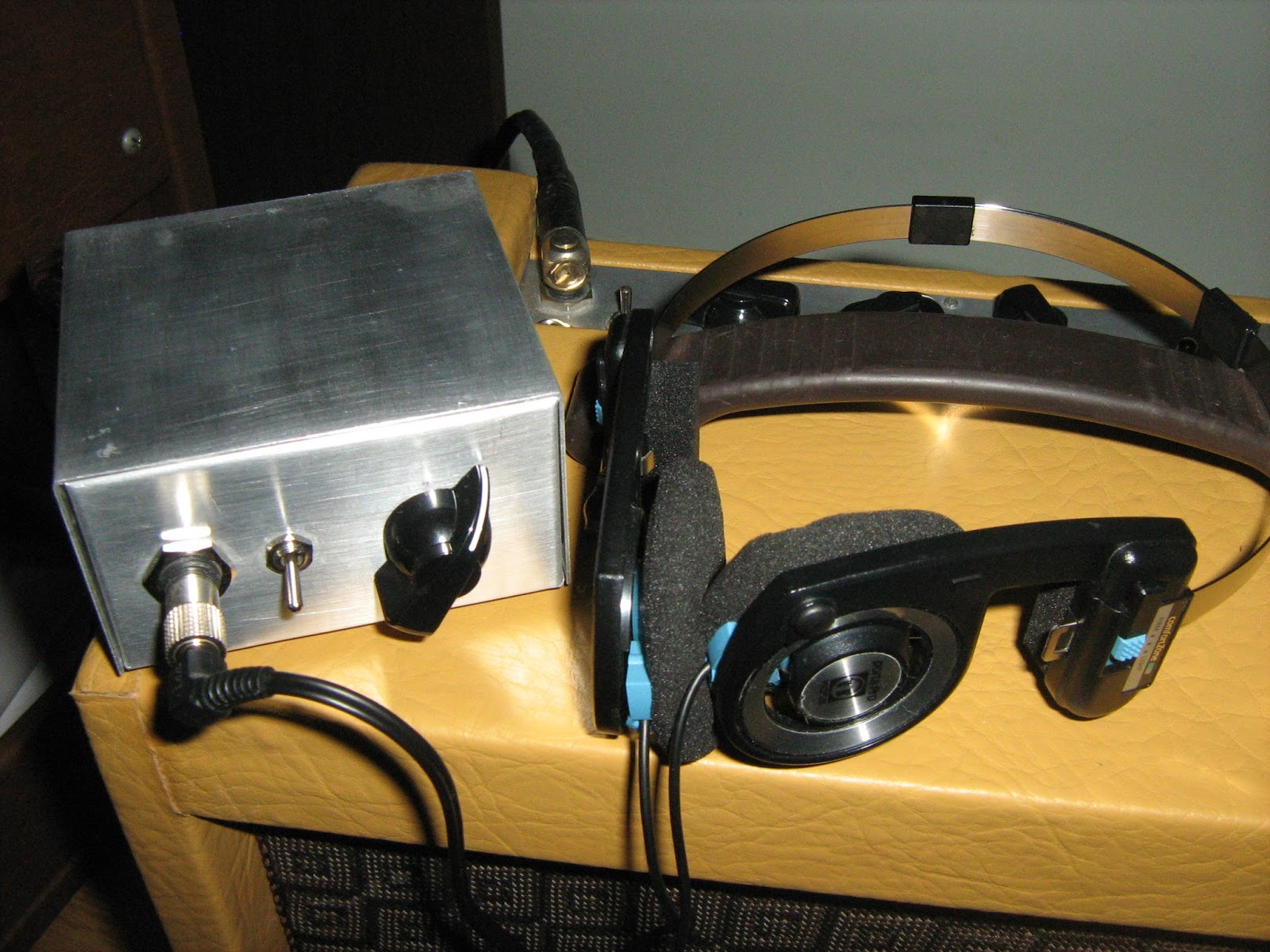

Second version V2:

  • Volume knob
  • left/off/right fake stereo effect switch


* Porta pro headphones are veeery good.
